Tank Capacity Tables


Water, Oil, Fuel and Adblue Tanks from TankDepot.co.ukUnfortunately, it is no longer possible to sell adblue, fuel, oil and water tanks soleley upon the basis of Imperial Gallon capacities. Instead adblue, water and fuel oil tanks must now be sold on the basis of their capacity expressed in metric Litres. However at TankDepot.co.uk, we recognise that a significant number of customers still understandably prefer to express oil tank capacities in Imperial Gallons.

The tables below summarise the capacities of the complete TankDepot.co.uk range, displaying both Imperial and Metric values. The information is sorted by product type and thereafter by capacity.


If you require assistance choosing the right capacity heating oil or diesel storage tank for your installation, please visit our 'Which Heating Oil Tank?' and 'Which Diesel Tank?' features.

Single Skin and Bunded Heating Oil Tanks / Bunded Biodiesel Storage Tanks

TankDepot.co.uk Bunded TanksBunded Tanks and Single Skin Heating Oil Tanks designed for the storage of Agricultural Fuel Oil, Gas Oil, Heating Oil and Kerosene for connection to fixed combustion appliances. Additionally, all Harlequin BioBund Bunded Tanks are suitable for the storage of Biodiesel blends of up to B100 produced in accordance with British Standard BS EN14214. Please note that Bunded Heating Oil Tanks supplied by TankDepot.co.uk are unsuitable for conenction to gravity fed, fuel dispensing installations.

Item Reference - click for product data
Litres
Imperial Gallons



333
73
645
143
800
176
900
198
1000
220
1003
221
1003
221
1003
221
1003
221
1000
220
1040
229
1040
229
J Seed F1130 Steel Bunded Heating Oil Tank
1130
249
1200
264
1225
270
1200
264
1200
264
1200
264
1335
294
1335
294
1335
294
1335
294
1300
286
1300
286
1360
299
1360
299
1380
304
1380
304
1380
304
1380
304
1413
311
1413
311
J Seed F1800 Steel Bunded Heating Oil Tank
1800
396
1800
396
2005
441
2005
441
2005
441
2005
441
J Seed F2250 Steel Bunded Heating Oil Tank
2250
495
2500
550
2500
550
2571
564
2571
564
2656
584
J Seed F2700 Steel Bunded Heating Oil Tank
2700
594
3500
770
3500
770
3600
792
5000
1100
5042
1109
5042
1109
Titan ES9000B/T Bunded Heating Oil Tank
9000
1978
9595
2111
9595
2111
10000
2200

Related Link :: Which Heating Oil Tank?

Diesel / BioDiesel Storage and Dispensing Tanks

Bunded Diesel Fuel Tanks from TankDepot.co.ukA comprehensive range of Bunded Fuel Tanks for the safe, secure and environmentally responsible storage of Diesel, together with UN-ADR approved portable fuel dispensing tanks from Cemo and Titan - ideal for on-site mobile refueling. Additionally, all Harlequin BioFuel Stations are suitable for the storage of Biodiesel grades up to B100 manufactured in accordance with British Standard NS EN14214.

Item Reference - click for product data
Litres
Imperial Gallons



200
44
430
94
900
197
1300
286
1300
286
1335
294
1335
294
1413
311
1413
311
1413
311
1413
311
2450
539
2411
530
2411
530
2450
539
2450
539
2450
539
2500
550
2500
550
3500
770
5000
1100
5000
1100
5042
1109
5042
1109
5042
1109
5042
1109
9000
1978
9595
2111
9595
2111
9595
2111


Bunded Waste Oil Tanks

Harlequin Bunded Waste Oil TankEngineered for the storage of waste oil at commercial, agricultural and industrial installations, TankDepot.co.uk's range of Bunded Waste Oil Tanks are also ideal for use at civic amenity sites. Manufactured in the UK and designed to exceed all applicable waste oil storage regulations, each Bunded Waste Oil Tank incorporates a large capacity tundish and is supplied complete with Oil Care Campaign Graphics as standard.

Item Reference - click for product data
Litres
Imperial Gallons



351
77
650
141
1003
221
1200
264
1453
320
2005
441
2571
566

Bunded Waste Oil Tank Quick Link :: Harlequin Bunded Waste Oil Tanks

Plastic Rainwater Harvesting Tanks

Rainwater Harvesting / Recycling TanksPlastic rainwater recycling / harvesting tanks from Titan and Paxton, together with Harlequin's new range of Rain Station, Rain Station Plus and Rain Master Rain Water Harvesting Tanks. Ideal for the collection, storage, harvesting and recycling of rainwater, a wide choice of capacities is available. For complete reassurance and peace of mind, all plastic rainwater harvesting tanks supplied by TankDepot.co.uk are fully stabilised for maximum protection against potentially damaging UV rays.

Item Reference - click for product data
Litres
Imperial Gallons



250
55
250
55
645
182
700
154
Titan RS700GE Rainwater Harvesting Tank
700
154
700
154
865
190
1065
234
1065
234
1250
275
1480
326
2655
584
2655
584
3929
864
3929
864
5307
1167
5307
1167
10,100
2,222


Non Potable Water Tanks

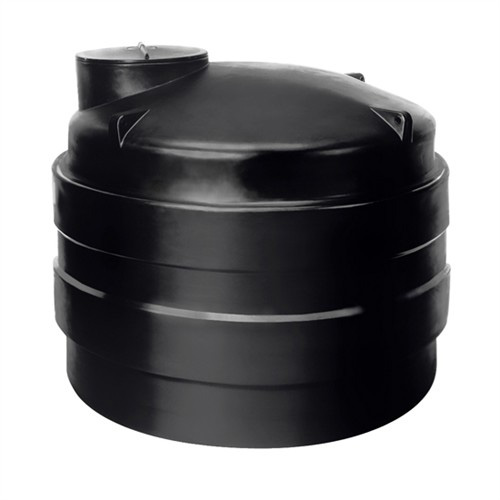

Non Potable Water Storage Tanks from TankDepot.co.ukTankDepot.co.uk's range of Non Potable Water Storage Tanks are rotationally moulded from a premium, UV stabilised grade of polyethylene. Whilst unsuitable for the storage of drinking water (i.e. water intended for human consumption),all Non Potable Water Tanks are ideal for use at agricultural, horticultural and industrial processing applications where on-site water storage is required. Additionally, Paxton's JB Water Tank range is also suitable for installation below ground.
Item Reference - click for product data
Litres
Imperial Gallons



909
200
1095
241
1300
286
1480
326
2500
539
2579
567
2728
600
3600
792
3929
864
4546
1000
5000
1100
5304
1167
10000
2200
10000
2200
10100
2220


Potable Water Tanks

WRAS Water Regulations Advisory SchemeDesigned for the storage of Potable Water (i.e. water intended for human consumption). All TankDepot.co.uk supplied Potable Water Tanks are manufactured in accordance with Water Regulations Advisory Scheme (WRAS) requirements.


Bunded Adblue Storage and Dispensing Tanks

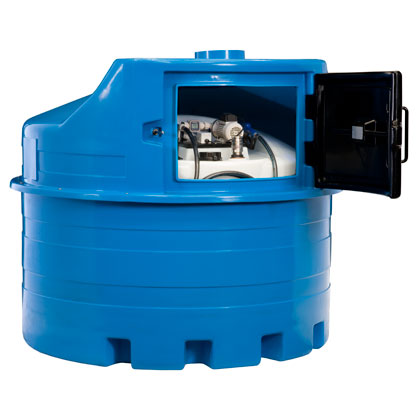

Harlequin Blue Station Bunded Adblue TanksAdblue is a specialist additive, which requires specialist handling and containment. All Harlequin Blue Stations are fully bunded. Supplied complete with Adblue compatible dispensing equipment as standard, they are ideal for the storage and dispensing of Adblue at commercial vehicle refueling installations and available complete with a range of temperature control packages as standard... to ensure stored Adblue remains in tip-top condition for longer.

Item Reference - click for product data
Litres
Imperial Gallons



1487
527
2587
569
5307
1166
10100
2220

Adblue Dispensing Tank Quick Links :: Harlequin Blue Station Bunded Adblue Tanks

Bunded Adblue Storage Tanks

Harlequin BlueBund Bunded Adblue TanksHarlequin's range of BlueBunds are designed for connection to remotely positioned Adblue dispensing facilities. Manufactured in the UK and fully bunded, all Harlequin BlueBunds have been engineered especially for the environmentally responsible containment of Adblue. They exceed all current and expected UK and EU Adblue storage requirements and can be quickly and easily installed.
Adblue Storage Tank Quick Links :: Harlequin BlueBund Bunded Adblue Tanks






























































IMPORTANT INFORMATION Every effort is made to keep this area of the site up to date. However, TankDepot.co.uk cannot be held liable for errors and omissions. All capacities stated are approximate.
